100bp DNA Step Ladder
Forty Blunt-Ended DNA fragments of 100–4,000bp in 100bp Increments
- Load 1μl/lane
- Supplied at a concentration of 1µg/μl
- Supplied with 6X Blue/Orange Loading Dye
- Intended for Laboratory Use (GPR) in the United States. Outside of the United States, this product is intended for research use only unless otherwise stated
Catalog Number:
Size
Catalog Number: G6951
DNA Step Ladders have defined sizes with exact incremental steps between bands. The ladders are not intended for use in quantitative analysis. The DNA fragments may be stained with ethidium bromide.

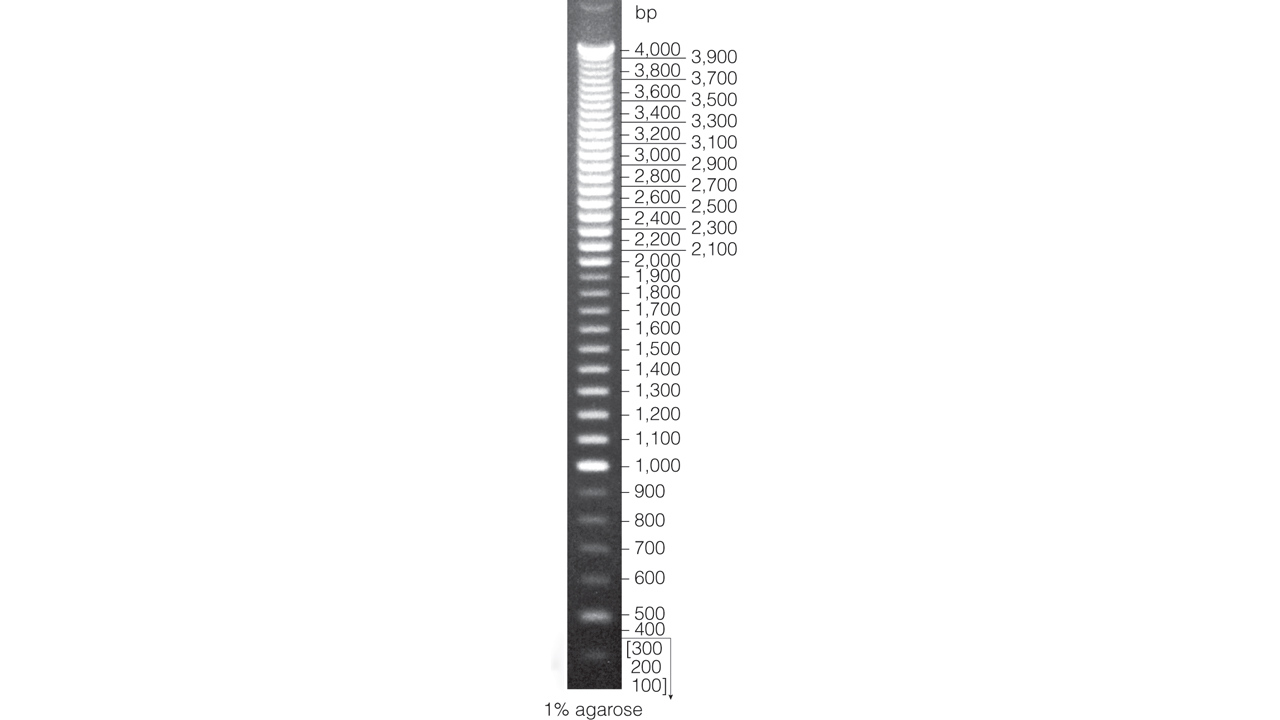

The 100bp DNA Step Ladder has 40 blunt-ended DNA fragments ranging from 100bp to 4,000bp in 100bp increments. Two internal features facilitate band identification. A high-intensity 500bp band stands out at the lowest segment of the ladder (<1kb). Bands within each segment (<1kb, <2kb, <4kb) have approximately the same intensity.
Storage Buffer: 10mM Tris-HCl (pH 7.4), 1mM EDTA.
Protocols
No protocols available
Specifications
Catalog Number:
What's in the box?
| Item | Part # | Size |
|---|---|---|
|
Blue/Orange 6X Loading Dye |
G190A | 1 × 1ml |
|
100bp DNA Step Ladder |
G695A | 1 × 100μg |
SDS
Search for SDSCertificate of Analysis
Use Restrictions
For Laboratory Use. Outside of the United States, this product is intended for research use only unless otherwise stated.Storage Conditions
